产品简介

APL奥谱勒公司是微波化学仪器生产商，一直注重设备安全运行和样品的高效率消解，具有微波仪器设计和制造ISO-9001认证证书，产品适用于微波化学标准方法，如: EPA、ASTM、NIST等。推出TouchWin2.0 40罐高通量密闭微波消解系统。

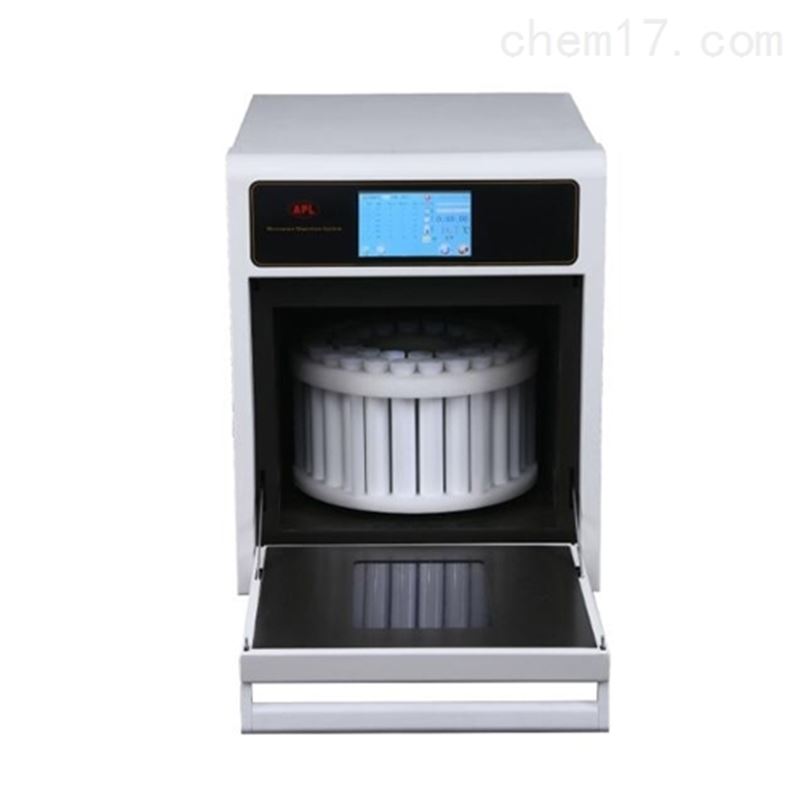

APL奥普乐公司Touchwin2.0 40罐高通量密闭微波消解系统，采用加厚增强的316L不锈钢微波谐振腔腔体，可以容纳多种规格消解罐（70ml,100ml,110ml）和处理1-40个样品；同时配置全罐红外测温和全罐压力监控功能，采用7寸触摸屏设计，中英文操作系统体现现代实验室的便捷和灵活。非脉冲连续微波输出，双磁控管二维顶部排列设计，高频闭环反馈控制等手段，可精确控制微波化学反应进程。

创新点：

APL奥普乐核心技术1：全罐温度监测控制技术，从底部扫描监测控制每个消解内罐温度并实时显示

APL奥普乐核心技术2：全罐压力监测控制技术，可以检测控制每个消解罐压力，保证设备安全运行

APL奥普乐核心技术3：顶部微波发射保证40位内外圈消解罐温度*

APL奥普乐核心技术4：非脉冲连续微波发射技术保证微波连续发射

APL奥普乐核心技术5：消解罐新型密封垂直防爆安全泻压技术

APL奥普乐核心技术6：转子识别系统自动识别转子数量

1. The infrared temperature measurement system could scan and monitor the temperature from the bottom of the each vessel, and then real-time display it.

2. The pressure monitoring system monitors the pressure of all the digestion vessels, which will well protect the operation of the machine.

3. The microwave is fired from the top to ensure the temperature of 40 vessels inside and outside is the same.

4. Non - pulse continuous microwave emission technology to ensure the continuous microwave-emitting.

5. Vertical explosion - proof and relief-pressure technology of digestion vessels

6. Rotor recognition system, it will  automatically identifies the quantity of the rotor.

Touchwin2.0 40罐高通量密闭微波消解系统主要特点：

一. 智能高通量微波化学工作平台，中英文操作系统，支持和国家标准方法

二.7寸超大触摸液晶显示屏：实时显示压力、温度、时间、功率及温度、时间曲线，一目了然；内置应用方法，用户调用即可

三. APL奥普乐核心技术保障设备安全运行

Reaction Vessels(optional)

High throughput vessels

Inner pot material: PFA、TFM 、Quartz are optional

Outer pot material: Xtra Fiber and PEEK are optional

The max pressure: 800psi、1500psi and 22000psi (optional)

The max temperature: 310℃(TFM inner pot)、600℃（Xtra Fiber outer pot)

Volume: 50ml、75ml、100ml

Throughput: 1-12/16 samples/batch、1-20/24samples/batch、1-40 samples/batch

Application: Foods、Soil、Sediment、Metal、Alloy、Geology、Capsules

Chemicals、Agricultural samples、Plant materials、Biological materials, etc

Ultrahigh pressure vessels

The max pressure: 150Mpa

The max temperature: 310℃(TFM inner pot)

Volume: 100ml

Throughput: 0-12/16 samples/batch

The Xtra Fiber has a strong ability to resist transverse impact. Its strength is higher than all other polymer engineering plastics, has a strong anti-corrosion ability

Application: Plastics、Rubber、Crude oil、Coal、Ceramics、Slag、Refractories, etc.
